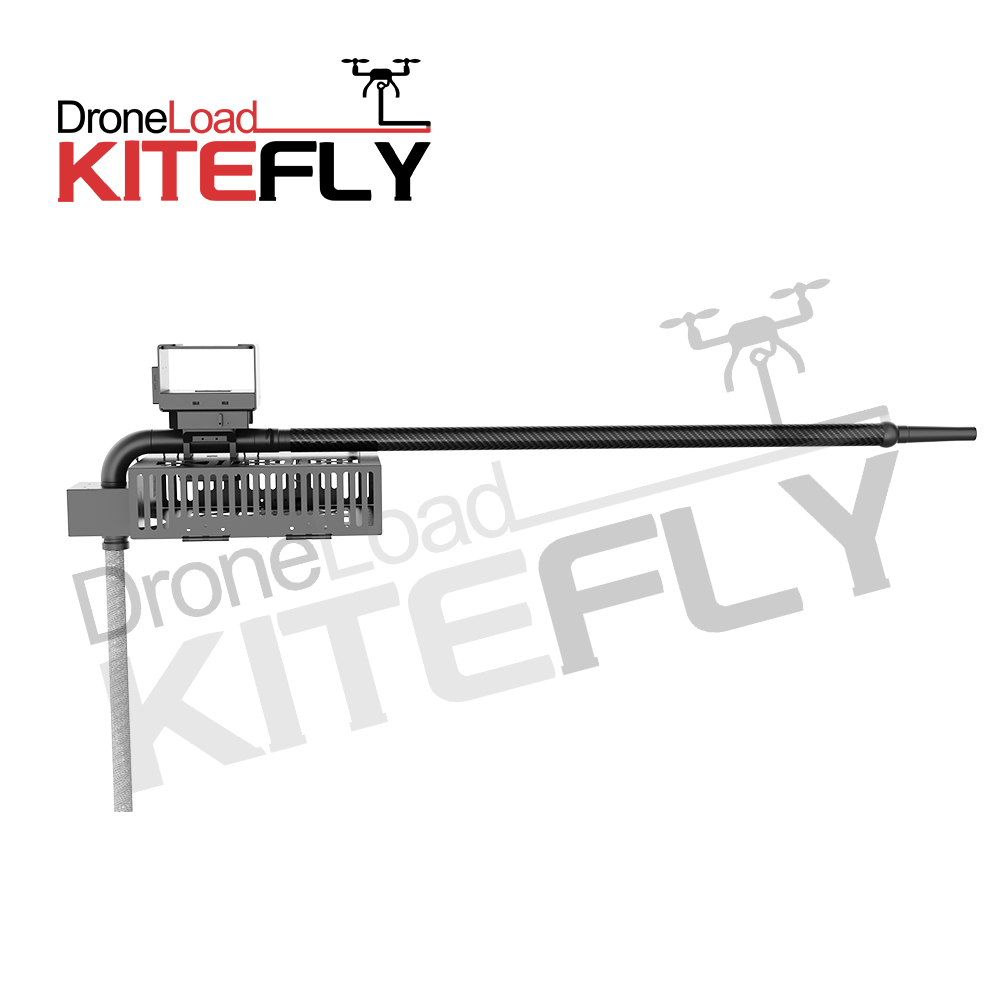

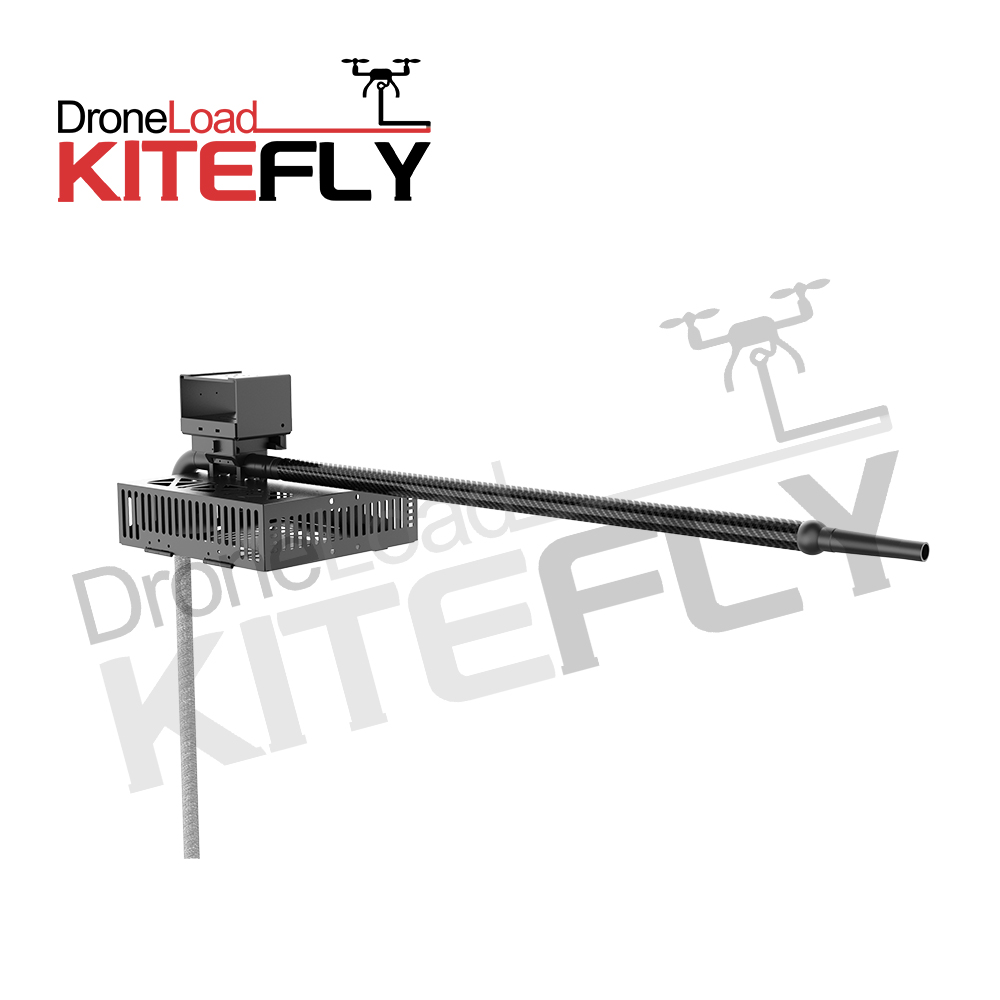

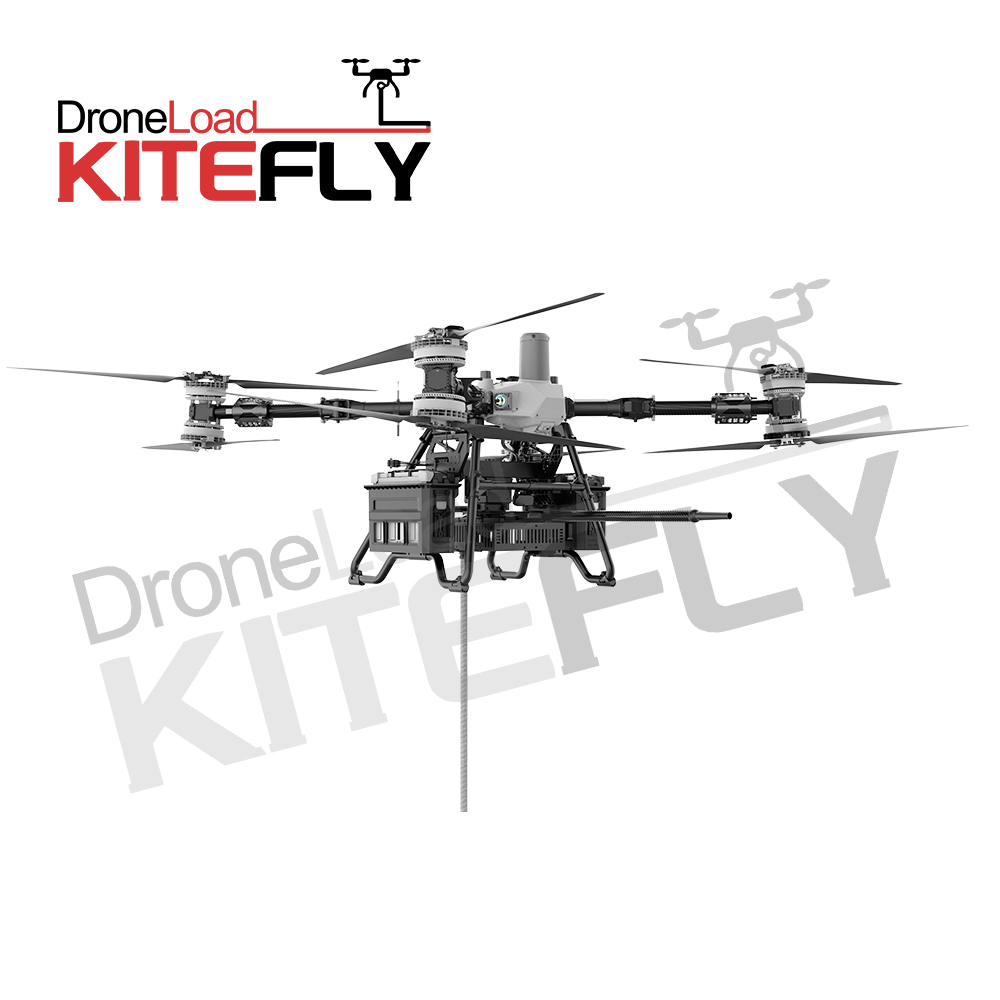

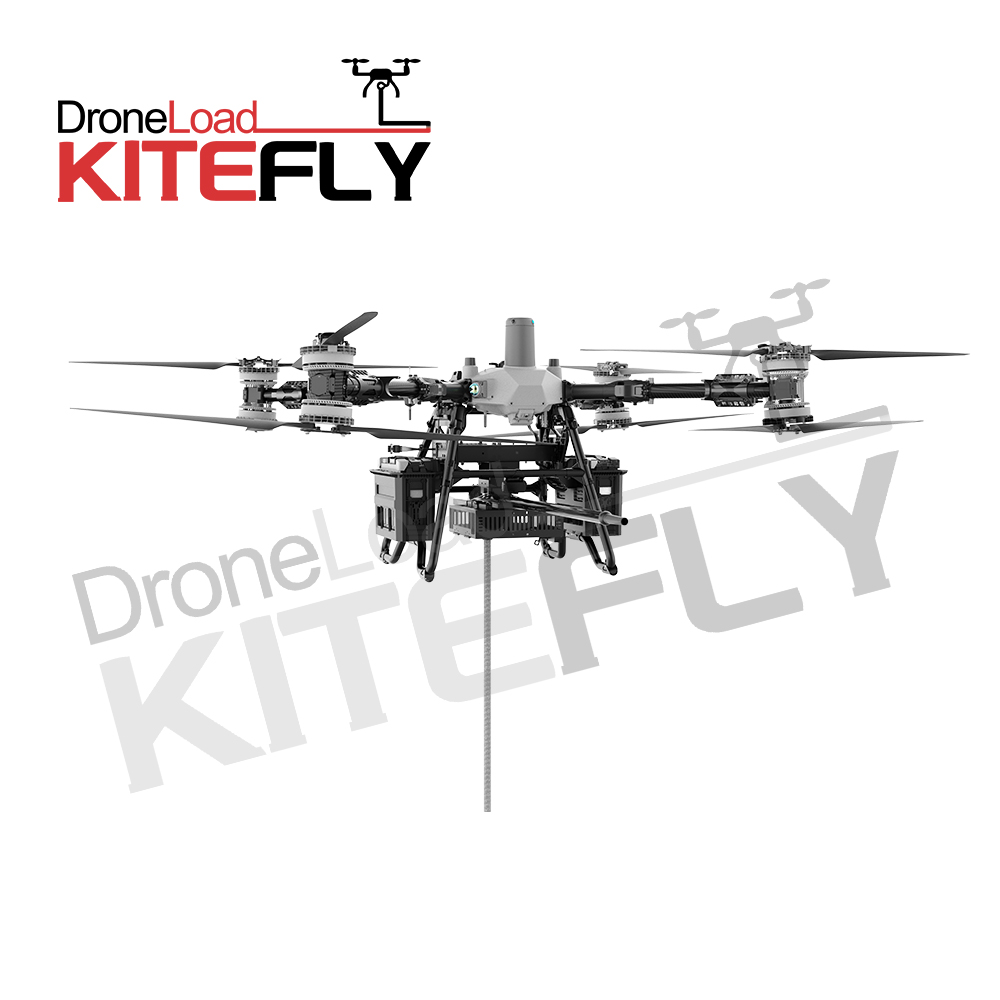

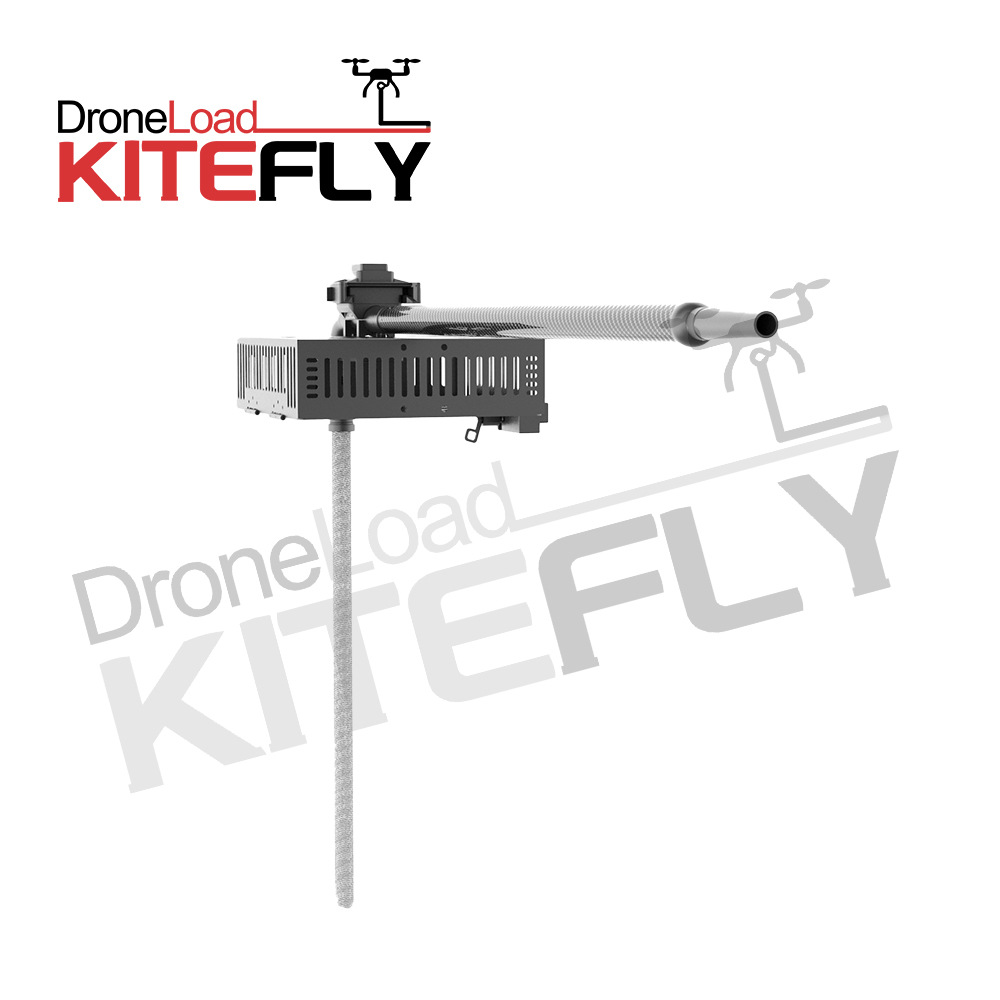

Engineered for the DJI delivery drone platform family, this system requires a minimal operational footprint of just 6 m × 6 m for rapid deployment. Featuring an aviation-grade modular quick-connect structure, it enables complete nozzle and hose assembly swap-out within 30 seconds. Equipped with a custom 40 mm hose as standard, the system can hoist and sustain elevated three-dimensional firefighting operations, effectively overcoming the height limitations of conventional fire apparatus. Ideally suited for complex fire scenarios in narrow alleyways of aging residential communities and forested areas surrounding buildings, it delivers a high-mobility solution for fire suppression in confined and restricted spaces. Compatible Aircraft: FC100 / FC200 / T70 / T70P / T100 / T100S

Specifications Dimensions (L × W × H): 2000 × 410 × 210 mm Weight: 5.8 kg (including quick-release mount) Supply Voltage: 24 V – 80 V Peak Power: ≤2 W Nozzle Lance Length: 2000 mm Hose Diameter: 40 mm Control Method: PSDK Extinguishing Agent Type: Firefighting foam / Water-based agent Nozzle Head Angle: Manually adjustable Mounting Method: Quick-release clamp with bolt fixation Recommended Operating Altitude: FC100: 0 – 70 m; FC200: 0 – 150 m Hose Length: FC100: 90 m; FC200: 150 m Effective Discharge Range: 10 – 15 m Working Pressure: 2.5 MPa Burst Pressure: 3.2 MPa Hose Connection Type: Integrated forged coupling Functions: One-touch hose release; Emergency hose jettison
