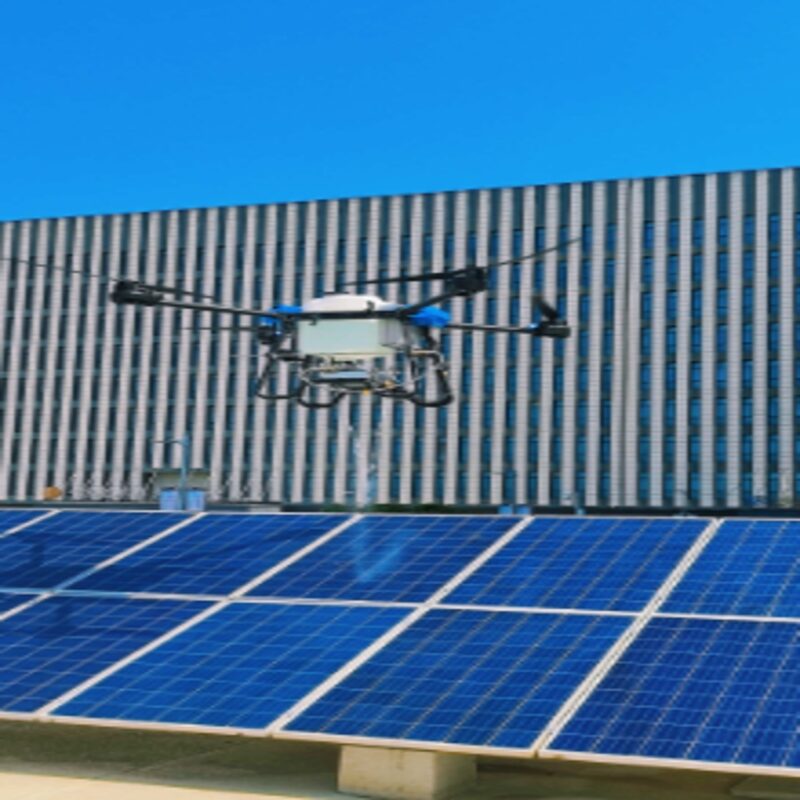

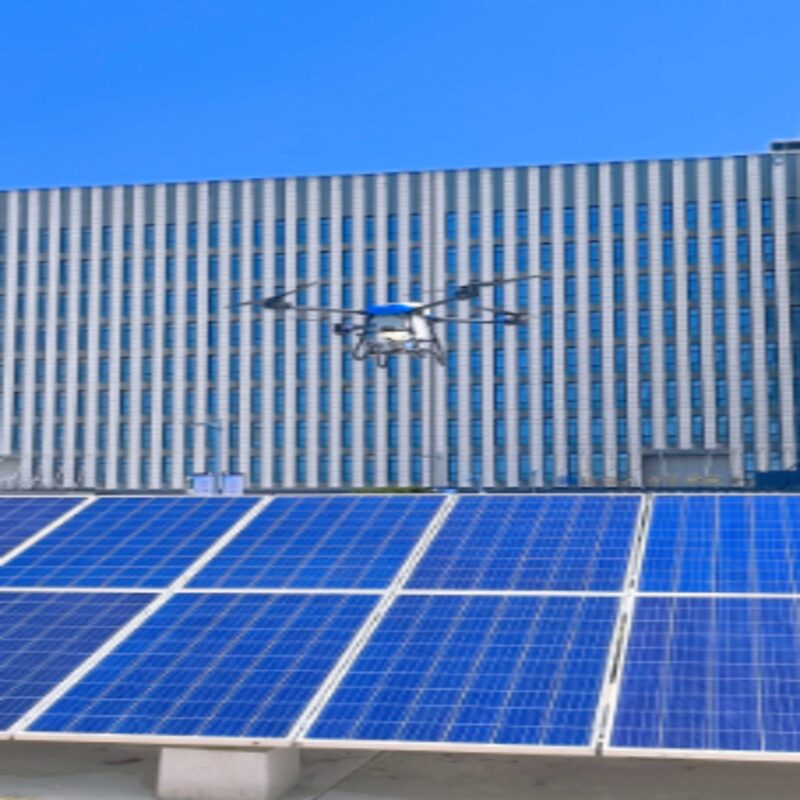

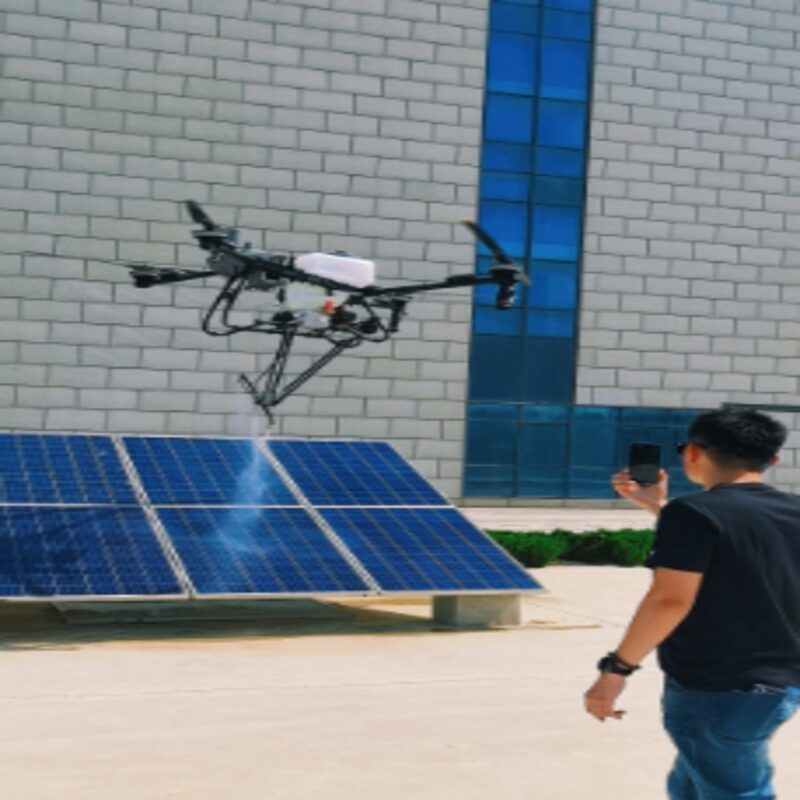

Aerial Cleaning SF-90X-150

Categories: ,

Contact Now
  • Dimensions (Deployed, Excluding Propellers): 2026×2190×910 mm (Length × Width × Height)
  • Dimensions (Folded, Excluding Propellers): 1200×1080×850 mm (Length × Width × Height)
  • Wheelbase: 2160 mm
  • Maximum Takeoff Weight (Including Undercarriage Payload): Approximately 80 kg
  • RTK/GNSS Frequency Band: 2.400-2.483 GHz
  • Maximum Flight Radius (Unobstructed, Uninterfered): 15 km
  • Maximum Tolerable Wind Speed: 6 m/s
  • Maximum Pitch Angle: 15°
  • Maximum Horizontal Flight Speed: 15 m/s
  • Maximum Flight Altitude: 6000 meters
  • Longest Flight Time: “With full load: 20 minutes; Without load: 40 minutes;”
  • Recommended Working Environment Temperature: 0℃ to 40℃
  • Obstacle Avoidance and Distance-Locking System
  • Obstacle Avoidance Method: Millimeter-Wave Radar for Front Obstacle Detection
  • Distance-Locking Obstacle Avoidance Range: 0.2 meters to 30 meters
